Indstøbte Transformere for Printmontage 1-10VA 50/60Hz

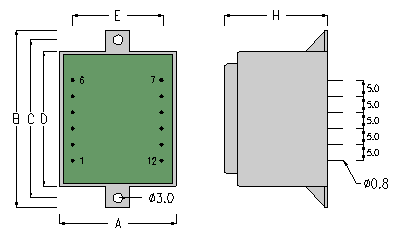

Print Layout & Dimensioner - Indst�bt Transformer for Printmontage 1-10VA 50/60Hz

TYPE	EFFEKT (VA)	A (mm)	B (mm)	C (mm)	D (mm)	H (mm)	E (mm)	Term.
070	1,0	31,0	50,0	43,0	37,0	30,0	20,0	10
071	1,5	31,0	50,0	43,0	37,0	34,0	20,0	10
080	2,5	36,0	58,0	50,0	42,0	32,0	25,0	10/12
081	3,5	36,0	58,0	50,0	42,0	34,0	27,5	10/12
082	5,0	36,0	58,0	50,0	42,0	39,0	27,5	10/12
090	6,0	44,0	68,0	63,0	52,0	38,0	27,5	12
091	8,0	44,0	68,0	63,0	52,0	42,0	27,5	12
092	10,0	44,0	68,0	63,0	52,0	47,0	27,5	12
100	3,5	38,0	63,0	56,0	45,0	32,0	25,0	12
105	8,0	48,5	74,0	63,0	57,5	40,0	32,5	12

Varianter fremstilles efter ønske
