TE Series - Dual Port Module

Features

  • Low profile (5.8mm) and light weight (4.0 g) 10/100Base-T Dual Port isolation transformer modules facilitate pick and place compatibility and speed of placement
  • SMD package for high density board placement
  • Dual port modules meet requirements of IEEE 802.3u and ANSI X3.263
  • Consistent and reliable co-planarity
  • Excellent quality at extremely competitive price due to high volume production
  • Manufactured in ISO-9001 approved facility


Electrical Specifications @ 25°C

Inductance: 350µH minimum @ 100kHz, 100mV, 8mA
Leakage Inductance: 0.4µH @ 1MHz
CW/W: 20pF Typical
Minimum Isolation Voltage: 1,500 Vrms


Operating Temperature: 0° to +70°C
Storage Temperature: -25°C to +105°C
Standard packing: Tape and reel




Quality and consistency is guaranteed through 100% testing of the specified parameters for primary inductance, leakage inductance, turns ratio, DC resistance and Interwinding capacitance. This ensures that the return loss and pulse wave shape requirements can be fully maintained. Additionally, all parts are tested for 1,500V minimum isolation.

Applications

10/100Base-T Dual transformer modules contain transmit and receive isolation transformers to maintain consistent wave shape and suppression of common mode noise while providing equipment isolation per IEEE 802.3. High impedance common mode quad chokes for additional EMI suppression have been added on some models as required for FCC and CISPR 22 Class B certification.

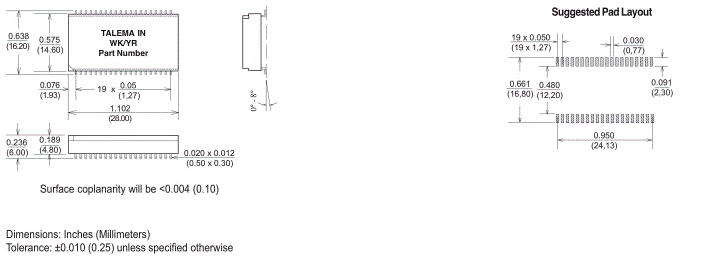

Dimensions

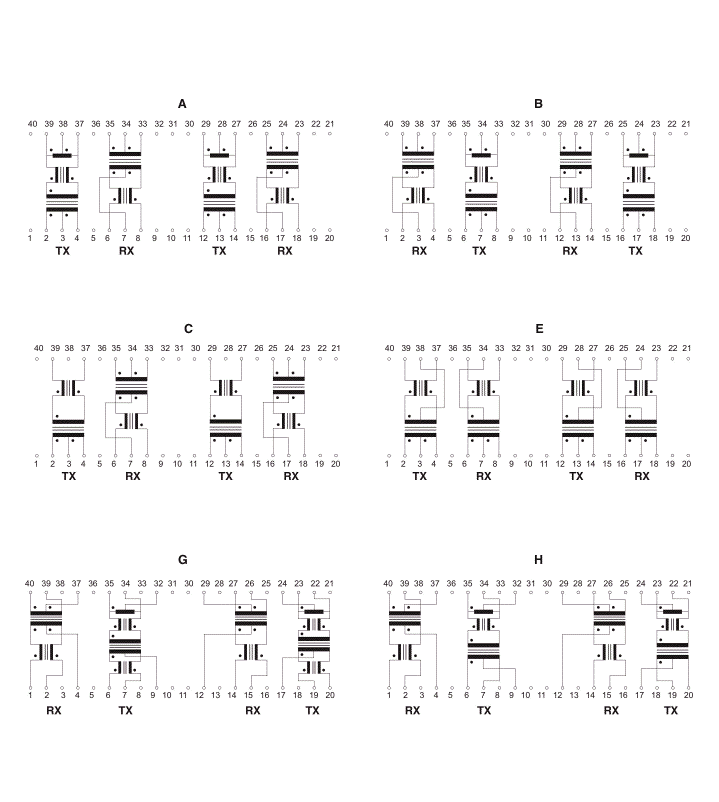

Schematics

TED Series - SMD Dual Port 10/100Base-T Isolation Transformer Modules

Part
Number		 Turns Ratio
±2%		 Insertion
Loss
(dB Typ.)		 Return Loss
(dB Min.)		 Crosstalk
(dB Typ.)		 Differential to
Common Mode
Rejection (dB Typ.)		 Schematic
Tx Rx 0.1-100MHz 2-30MHz 40MHz 50MHz 60-80MHz 1MHz 30MHz 60MHz 100MHz 1-60MHz 60-200MHz
 TED-200A-J 1ct:1ct 1ct:1ct -1.2 -16 -14 -13 -12 -50 -45 -40 -35 -37 -33 A
 TED-200B-J 1ct:1ct 1ct:1ct -0.5 -21 -17 -14.5 -12 -65 -55 -45 -35 -45 -35 B
 TED-200C-J 1ct:1ct 1ct:1ct -0.5 -21 -17 -14.5 -12 -65 -55 -45 -35 -40 -30 C
 TED-200E-J 1ct:1ct 1ct:1ct -1.0 -16 -14.4 -13 -12 -50 -45 -40 -35 -37 -33 E
 TED-200G-J 1ct:1ct 1ct:1ct -0.5 -21 -17 -14.5 -12 -65 -55 -45 -35 -53 -40 G
 TED-200H-J 1ct:1ct 1ct:1ct -0.5 -21 -17 -14.5 -12 -54 -55 -45 -35 -45 -35 H



Dimensions & Schematics
