LTM-110A - Line Interface 56kbps Modem Transformer

Features

designed for V.90 applications (56kbps)
very low distortion
wide frequency range with flat response
meets IEC 60950 Supplementary Insulation levels, 1,500V min.
excellent quality at competitive price due to high volume production
manufactured in ISO-9001:2000 approved facility

LTM-110A - Line Interface Modem Transformer

Mechanical Dimensions & Pinout
Performance Date

Electrical Specifications @ 25°C - Operating Temperature -40°to 85°C

Parameter	Conditions	Typical	Limit	Units
Frequency Response	200 - 4,000Hz	±0.5	-	dB
Insertion Loss	2,000Hz, RL600 Ohms	1.0	1.5 max	dB
Return Loss	200 - 4,000Hz	22	18 min.	dB
THD	150Hz, -3dBm	-70	-	dB
THD	200Hz, -10dBm	-85	-	dB
DC Resistance	per winding	70	±10%	Ohms
Inductance	1,000Hz, 1V	6.0	-	H
Leakage Inductance	1,000Hz, 1V	17	-	mH
Turns Ratio		1:1	±2%	-

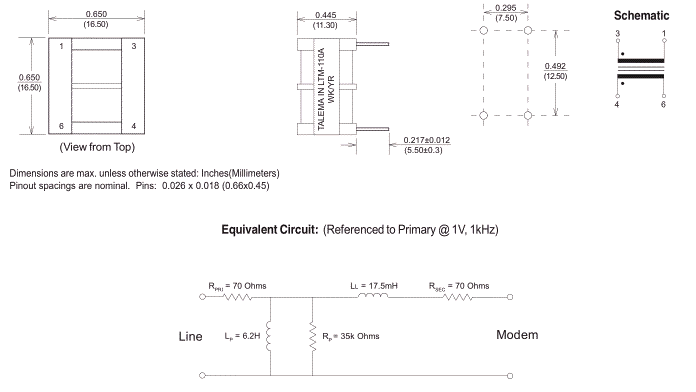

Mechanical Dimensions, Pinout & Schematic

Dimensions & Schematic - Pins

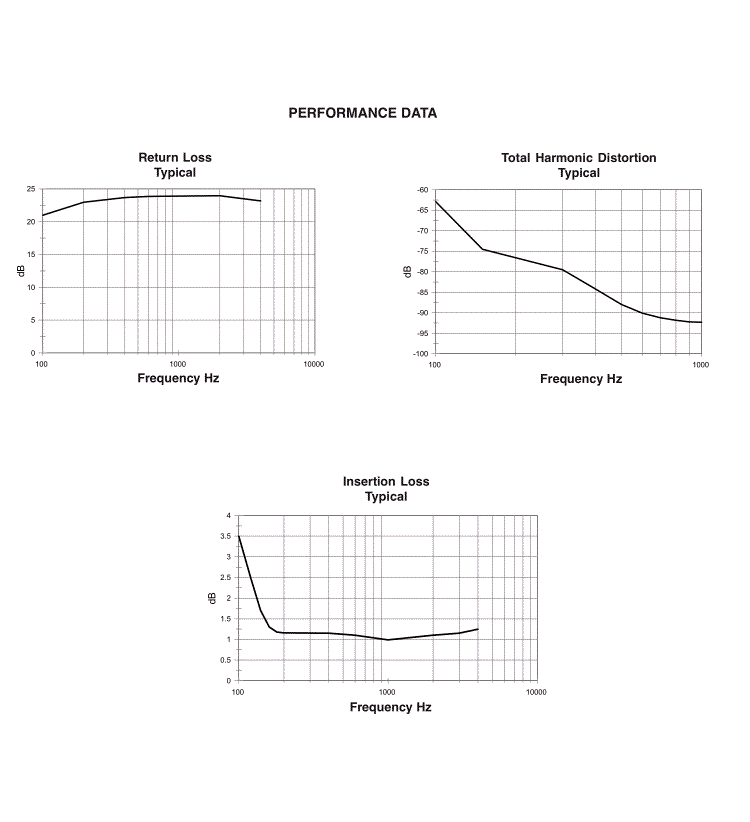

Perfomance Data
