VDSL Miniature SMD Transformer

Features Complies with requirements of IEC60950, EN60950, UL60950/CSA60950 and AS/NZS60950 Low profile, light weight SMD packages for pick and place compatibility while providing consistent and reliable co-planarity Excellent quality at extremely competitive price due to high volume production Manufactured in ISO-9001 approved facility

Electrical Specifications @ 25°C
Minimum Isolation Voltage: 1,500Vrms for 1 minute Operating Temperature Range: -40° to +85°C Storage Temperature: -25°C to +125°C Supplementary insulation for a primary circuit at 250Vrms working voltage			Inductance & Leakage measured at 100kHz, 10mVAc Standard Packaging: Tape & Reel Weight: 2.5 g

VDSL Transformer

Part Number	OCL		Turns Ratio ±2%	DCR (mOhms) Max.	Line Impedance	Leakage Inductance	VP (Vrms)
	(µH Min.)	Pins
82312	95 430 125 95	16-14 11-9 3-1 6-8	(16-14):(1-3):(15-13) = 9:10:10 (11-9):(6-8):(10-12 ) = 19:9:9	350	100 Ohm	0,2µH max., 16-14 (s.c.15+1, 3 +13) 0,8µH max., 11-9 (s.c.12+8, 6+10)	1.500

Dimensions & Schematics

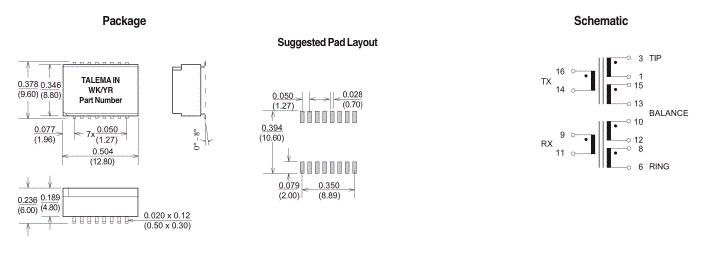

Dimensions & Schematic - Pins
