AEP900 -Legerity(AMD) Chipsets

Features

complies with ANSI and ETSI requirements
matched to Legerity´s AMDSL 134 chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

AEP900 - Legerity (AMD) Chipsets

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
(µH)
±10%

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD (Linearity)
Typical

Longitudinal Balance
Min.

Insertion
Loss
Max.

Frequency Response
Max.

Isolation Voltage (Vrms)

AEP900-T

TH

AMDSL 134 CO

2 : 1

410

8

60

0,90 / 0,50

-80dB
100kHz

-40dB
25kHz - 1MHz

0,5dB
100kHz

1,0dB
30kHz-1,1MHz

1.500

AEP900-S

SMD

AEP910-T

TH

AMDSL 134 CPE

1 : 1

410

8

60

0,90 / 1,00

AEP910-S

SMD

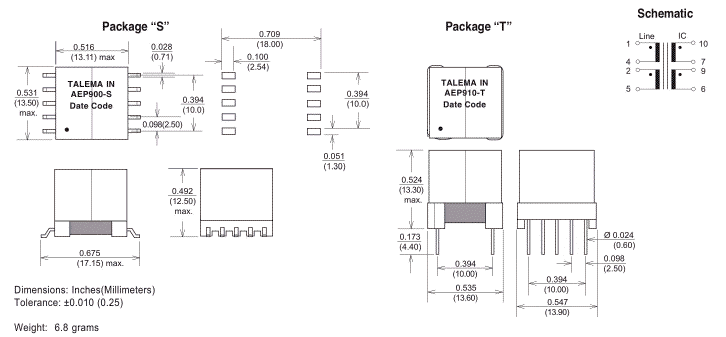

Dimensions & Schematic - Pins
